300L 500L 1000L 2000L 3000L micro beer brewery equipment

FOB Reference Price:Get Latest Price
$21,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SLET
Model Number:
300L 500L 1000L 2000L 3000L
Processing Types:
beer
Voltage:
Customized 220V,380V,50HZ,60HZ
Power(W):
Depend on the brewery
Dimension(L*W*H):
Depend on the brewery size
Weight:
Depend on the brewery capacity
Certification:
CE,PED,LVD
Material:
stainless steel 304, red copper
Application:
making beer,beer fermenting
Keywords:
micro beer brewery equipment
Heating method:
electric heating,steam heating
Control system:
semi auto,auto control the fermenters temperature
Thickness of tank:
inner 3.0mm,outer 2.0mm
Insulation material:
polyurethane 80mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 Years
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
PE film,wooden case packaging,steel packaging
Port
Qingdao China
Lead Time :
30 working days after confirm the deposit
Video Description
Our Company
SLET Beer Brewing Equipment,Micro Beer Brewery Equipment,300L 500L 1000L 2000L 3000L brewery project for your choice
Jinan Shun long is the professional production the complete brewery equipment brewhouse,beer fermenting equipment,also customized the brewery according to the customers' required,so just let me know your design,we can produce the one that you want,not matter set up the home,hotel,pub or the brewery factory,our team all can service for you
Product Description
500L 1000L 2000L 3000L complete beer brewery equipment list for checking
Brewing system
Components
Specifications
Crushing System
Malt Mill
Grain conveyor,the grain hopper( popular for 2000L,3000L and bigger capacity)
Double roller
Speed differential
Stainless steel screw
PVC pipe
SUS304
Brewhouse System
Mash Tun/Lauter tank
Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring

Brew Kettle/Whirlpool Tank
Steam Jacket on bottom and side
Steam vent with condensate ring for kettle stack
Hot Water Tank
Heating water and storage hot water
The spare parts
plate heat exchanger,working platform,wort pumps and valves,pipes.yeast tank,
Fermenting System
Beer Fermentation Tank
Bright Beer Tank
Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm
Germany import Kieselmann Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Dry hopping port
Carbonation stone
Sight level
Cooling System
Ice Water Tank
Insulated conical top and sloped bottom
Refrigerating Unit
3P-20P
Cleaning System
Caustic Tank
electric heating element inside
With the cleaning pump
Sterilization Tank
Control System
Brewing and fermetation process Controlling
Manual/Semi-automatic/Automatic
PLC control with touch screen for special
Heating System
Three heating method
Electric heating,steam heating,direct fire heating
Filling System
Bottle/keg filling line
Manual/Auto bottle filling,washing machine
Manual/Auto keg filling,washing machine
Manual bottle capping machine,label machine
Stainless steel beer kegs,beer cooling machine
Detailed Images

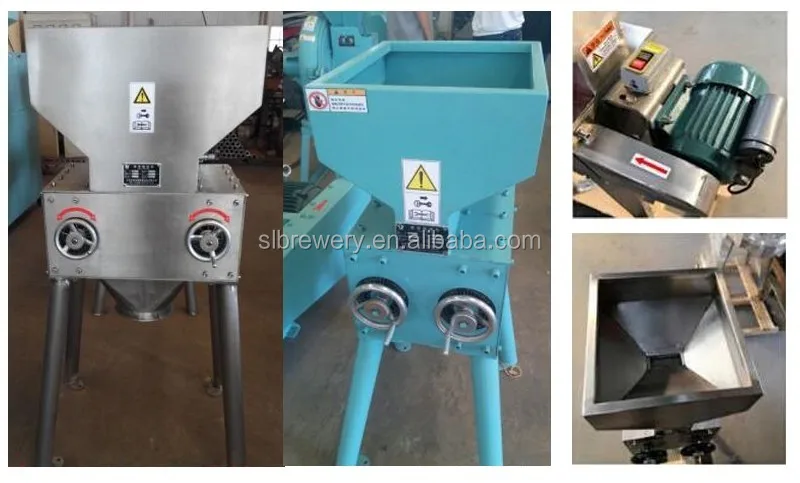

The Crushing System: The Malt Mill and the grain conveyor
The 150kg/h capacity suitable for the home brewery,100L brewery,the 200kg/h-300kg/h capacity suitable for the 500L-1500L beer brewery,the 500kg/h capacity for the 2000L brewery.
The Brewhouse system: Mash tun,Lauter Tank,Brew kettle,Whirlpool tank, Hot water tank
Two vessel brewhouse: mash tun/lauter tank,kettle/whirlpool tank
Three vessel brewhouse:mash tun/lauter tank,kettle/whirlpool tank,hot water tank
                                                  or mash tun,lauter tank,kettle/whirlpool tank
Four vessel brewhouse: mash tun,lauter tank,brew kettle.whirlpool tank

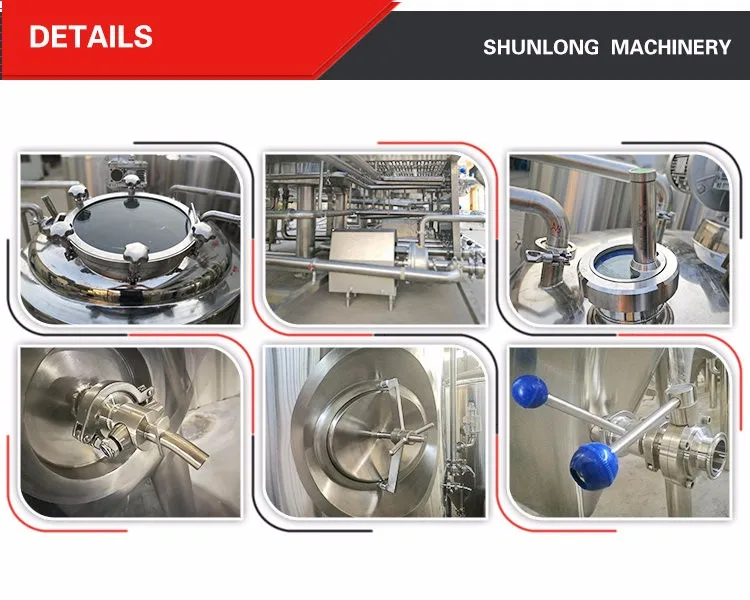

The details processing of the brewery:
Fermenting System: Beer fermentation tanks,bright beer tanks.
The tanks with the double layer jacket,and the cooling jacket on the body and the cone.the insulation material is 80mm,can be choose the top manhole or side manhole.
Cooling system: ice water tank,refrigerating unit,ice water pump
Cooling the fermenters temperature,the tanks for sus304,double layer tanks
Control system: the control cabinet.
The separate brewhouse controller and other controller,auto control the fermenters temperature
Packing & Delivery
Certifications
Our Service

Pre-sale service:
1.Make the equipment details specifications to customers.
2.We can supply the OEM process,according to the drawings,the samples to customized the beer equipment
3.Layout plan in CAD drawing.
4.The competitive price and the timely delivery
After-sale service:
1.Provide the required customs declaration files,timely tracking freight.
2.The equipment main configurations for 3 years warranty time,such as the valves and so on
3.Professional engineers for installation,commissioning,maintenance
4.Directed by executable remote installation(with no experience in beer,equipment installation experience,can also perform operations,please make this clear before custom equipment,we have successful cases)

If you are interested in the beer brewery equipment,please do not hesitate to contact me,i can supply you all info.
